The world's first* F1.8 full-frame mirrorless zoom
![In Stock In Stock](https://www.sigma-imaging.fi/media/amasty/stockstatus/in_stock.jpg)

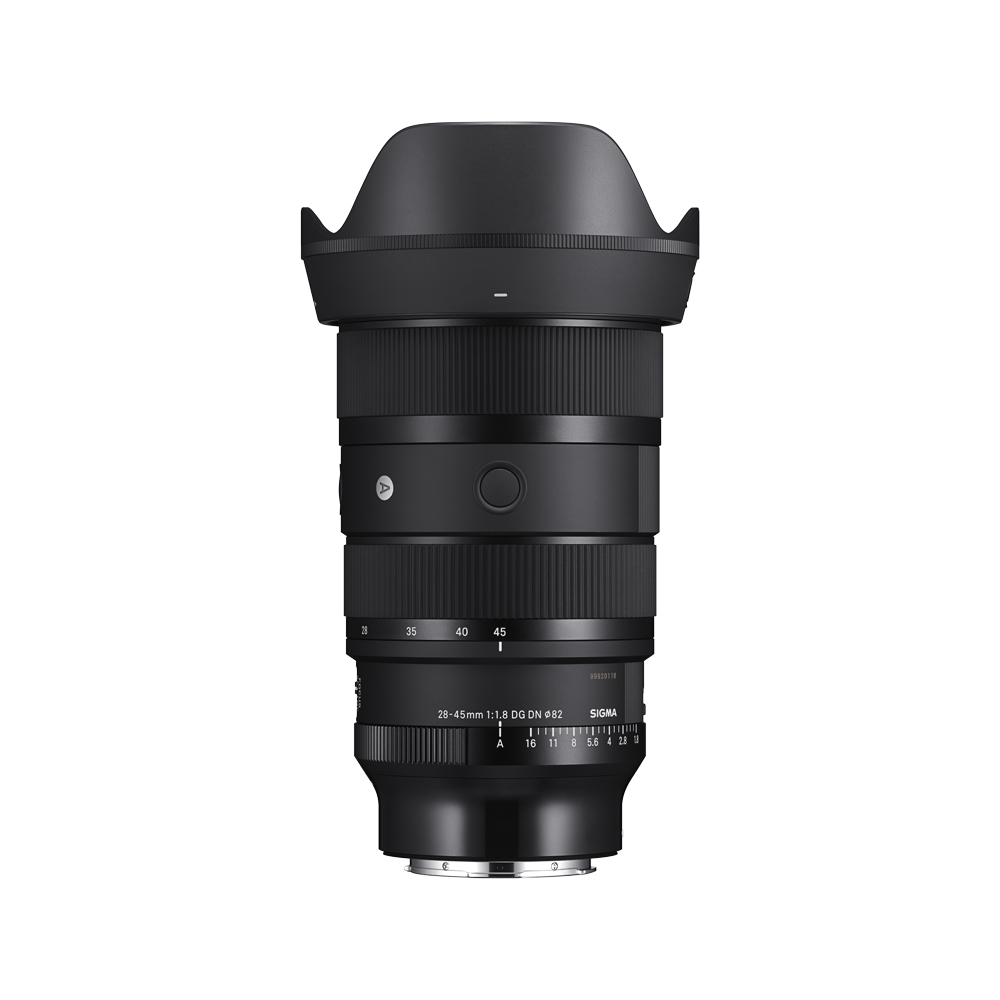

The SIGMA 28-45mm F1.8 DG DN | Art is the world's first full-frame zoom lens with a constant maximum aperture of F1.8, delivering sharpness and clarity comparable to that of a prime lens.
Already the pioneer of unique, large-aperture zoom lenses including the SIGMA 18-35mm F1.8 DC HSM | Art and the SIGMA 24-35mm F2 DG HSM | Art, SIGMA introduces another fast, portable and versatile tool to its Art lineup.
In addition to its unprecedented brightness, the SIGMA 28-45mm F1.8 DG DN | Art delivers sharpness and clarity comparable to that of a prime lens throughout its entire zoom range. Also equipped with fast and precise AF and superior operability, this innovative optic turns a new page in the history of zoom lenses and their creative possibilities. It is a lens that will inspire full-frame film-makers, while bringing unparalleled versatility to stills photographers.
* As of June 2024 by SIGMA
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/07_PPhoto_28_45_18_dgdn_a024_Lmt_horizontal2.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/07_PPhoto_28_45_18_dgdn_a024_Lmt_horizontal2.jpg)
Constant maximum aperture of F1.8
Once a privilege reserved only for prime lenses, the maximum F1.8 aperture allows full-frame camera users to expose hand-held in low light and produce beautiful bokeh, while enjoying the flexibility of a zoom. This unique optical achievement has been created through SIGMA's accumulated optical design experience and advanced production technology at the company’s sole production base in Aizu, Japan.
Practical and stable inner zoom
Employing an inner zoom mechanism, the overall length of the lens remains constant when the focal length or focus distance changes. This means the lens is easy to use when shooting hand-held, highly stable when mounted on a tripod or gimbal, and more resistant to dust and water contamination.
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_a024_sample_image_Anabel_DFlux__11.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_a024_sample_image_Anabel_DFlux__11.jpg)
Image by Anavbel DFlux
Consistent close focus
The minimum focusing distance is a constant 30cm across the entire zoom range, with a maximum magnification ratio of 1:4 at the telephoto end, providing excellent close-up shooting capabilities. As well as offering precise focus in confined spaces, the lens can therefore be used close to a subject without affecting sharpness when using the zoom.
Premium build at a lighter weight
By rights, such a fast zoom should be big and heavy, but while the lens’s rigidity and durability protect its sophisticated optical design, this is achieved at a weight of less than 1kg. What’s more, this reliable photographic tool uses a versatile filter size of φ82mm, meaning no compromise in portability or convenience.
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Masami_Tanaka_1.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Masami_Tanaka_1.jpg)
Image by Masami Tanaka
The pinnacle of optical quality in a zoom
Through the effective arrangement of 5 SLD elements and 3 aspherical elements, aberrations are rigorously corrected. Axial chromatic aberration, which is particularly noticeable with large-aperture lenses, has been thoroughly suppressed, and the lens delivers clear images with minimal coloration, from sharply focused details to large, smooth bokeh.
Suppression of focus breathing
When using regular lenses, the angle-of-view can change as focus moves from near to far, affecting precise composition. With the SIGMA 28-45mm F1.8 DG DN | Art this focus breathing is suppressed, enabling natural focus pulls when shooting video.
Minimal flare and ghosting
Flare and ghosting, which reduce image quality, have been largely eliminated using advanced simulation technology, ensuring the lens renders rich, high-contrast results in all conditions. In addition, in order to keep flare and ghosting to a minimum, the lens uses SIGMA’s Nano Porous Coating and Super Multi-Layer Coating, producing superior resistance to backlighting and enabling clear, saturated images in all lighting conditions.
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Aya_Iwazaki_3.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Aya_Iwazaki_3.jpg)
Image by Aya Iwasaki
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_a024_yf_20240515_SIGMA_TSUGARU-13_15_.jpg)
![](https://www.sigma-imaging.fi/media/wysiwyg/weather_sealed_web.jpg)
Image by Yuichiro Fujishiro
Faster focus with a linear motor
The lens’s AF mechanism uses an HLA (High-response Linear Actuator) to combine accelerated focusing speed with exquisite precision. And because the motor is near-silent it allows video recording without noise.
Precise and comfortable manual focusing
To deliver delicate and accurate manual focus, the lens employs a bi-wire driven focus ring with optimum torque setting, high resolution and an adjustable rotation angle between 90° and 720°*. This allows film-makers to pull focus with organic smoothness, and photographers to focus manually with outstanding accuracy.
* Only for L-Mount, and with compatible cameras.
Aperture ring refinements
The lens is equipped with an aperture ring as well as an aperture ring click switch and an aperture ring lock switch, allowing for aperture operation suitable for various shooting situations.
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Aya_Iwasaki_1.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Aya_Iwasaki_1.jpg)
Image by Aya Iwasaki
Equipped with two AFL buttons
Located on the side and on top of the barrel, two customizable* AFL buttons can be easily reached in either horizontal or vertical shooting positions.
* Assignment of functions is limited to supported cameras and assignable functions vary depending on the camera.
Built to withstand the elements
In addition to a dust- and splash-resistant body*, the frontmost surface of the lens is coated with a water- and oil-repellent coating so that it can be used safely even in harsh outdoor environments.
* The product is designed to be dust- and splash-resistant but is not waterproof. When using the lens near water, etc., take care not to allow large amounts of water to splash on it. If water gets inside the lens, it may cause a major malfunction and render the lens unrepairable.
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Aya_Iwasaki_3.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_Aya_Iwasaki_3.jpg)
Image by Aya Iwasaki
Additional features
● Lens construction: 18 elements in 15 groups (5 FLD, 3 aspherical)
● Inner zoom
● Inner focus system
● Compatible with high-speed autofocus
● Dual HLA (High-response Linear Actuator)
● Compatible with Lens Aberration Correction
* Function available on supported cameras only. Available corrections and auto correction functionality may vary depending on the camera model.
* On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’ (AUTO).
● Support for DMF, AF + MF
● Compatible with AF assist (Sony E-mount only)
● Nano Porous Coating
● Super Multi-Layer Coating
● Water and Oil Repellent Coating (front element)
● AFL buttons (2 buttons)
* Only on compatible cameras. Available functions may vary depending on the camera used.
● Focus Mode switch
● Switching between linear and non-linear focus ring settings (L-Mount only)
● Aperture ring
● Aperture ring click switch
● Aperture ring lock switch
● Zoom lock-switch
● Dust and Splash Resistant Structure
● Petal Type Hood with lock (LH878-06)
● Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)
● Designed to minimize flare and ghosting
● Every single lens undergoes SIGMA’s proprietary MTF measuring system
● 11-blade rounded diaphragm
● High-precision, durable brass bayonet mount
● “Made in Aizu, Japan” craftsmanship
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_a024_yf_20240515_SIGMA_TSUGARU-32_4_.jpg)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/28_45_18_dgdn_a024_yf_20240515_SIGMA_TSUGARU-32_4_.jpg)
Image by Yuichiro Fujishiro
Product Lines | Art |
---|---|
Construction | 18 elements in 15 groups, (5 FLD, 3 aspherical elements) |
Lens Type | Standard |
Sensor Size | Full Frame |
Angle of view | 75.4-51.3° |
Number of diaphragm blades | 11 (rounded diaphragm) |
Minimum aperture | F16 |
Minimum focusing distance | 30cm |
Maximum magnification ratio | 1:4 at f=45mm |
Dimensions (diameter x length) | Sony FE φ87,8mm × 151,4mm |
Weight (g) | Sony FE 950g |
Filter diameter | 82mm |
Edition number | A024 |
Supplied Accessories | Lens hood LH878-06, Front Cap LCF-82 Ⅲ, Rear Cap LCR , Lens case LS-612SEL |
Accessories | USB Dock UD-11 (L-mount), SIGMA WR CERAMIC PROTECTOR 82mm, SIGMA WR PROTECTOR 82mm, SIGMA WR UV FILTER 82mm, SIGMA WR CIRCULAR PL FILTER 82mm |
EAN | Sony FE 085126612658 |
Lens Construction
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/612_LC.png)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/612_LC.png)

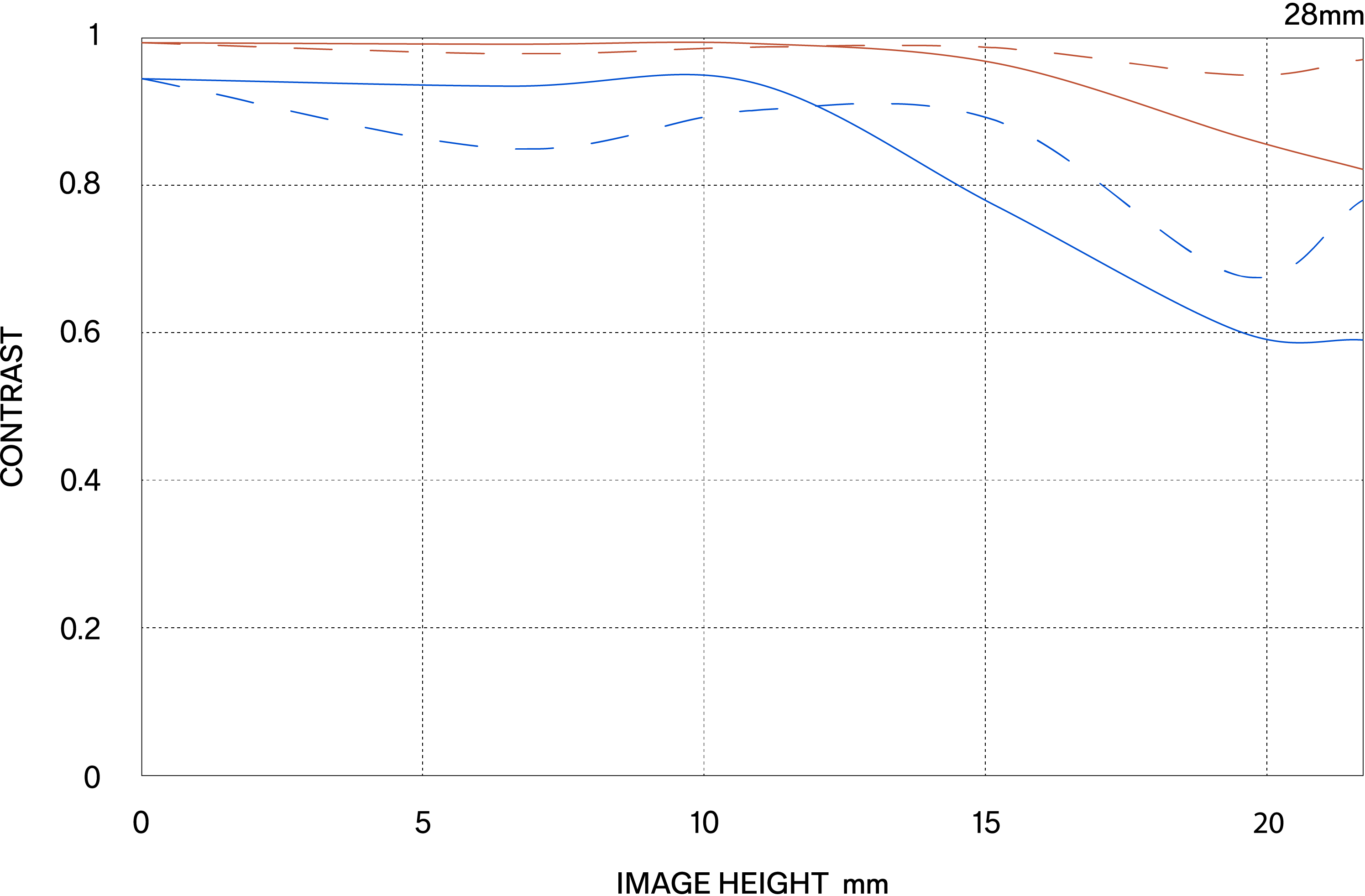

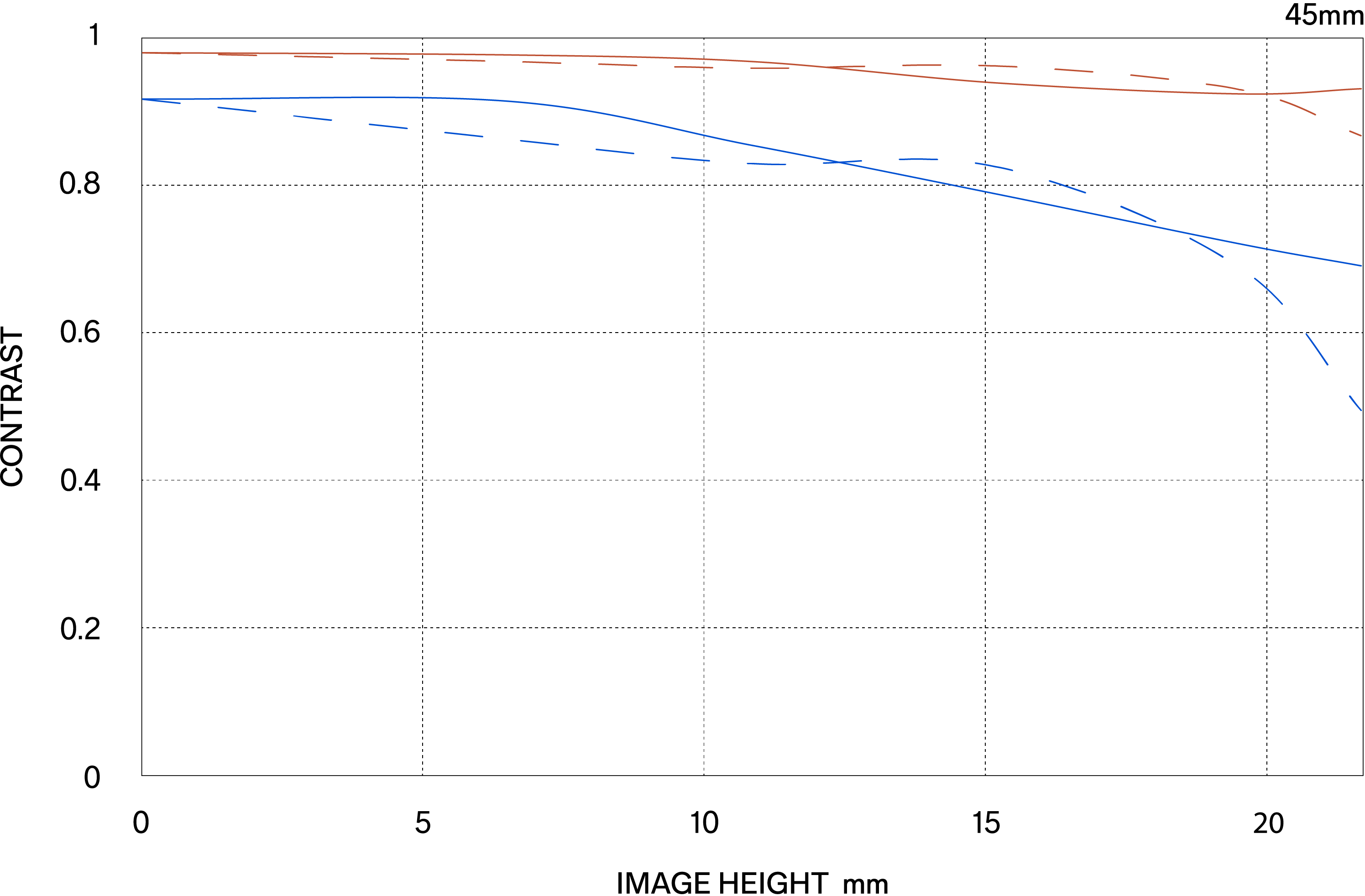

Geometrical MTF Chart
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/612_MFT_Geometrical.png)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/612_MFT_Geometrical.png)

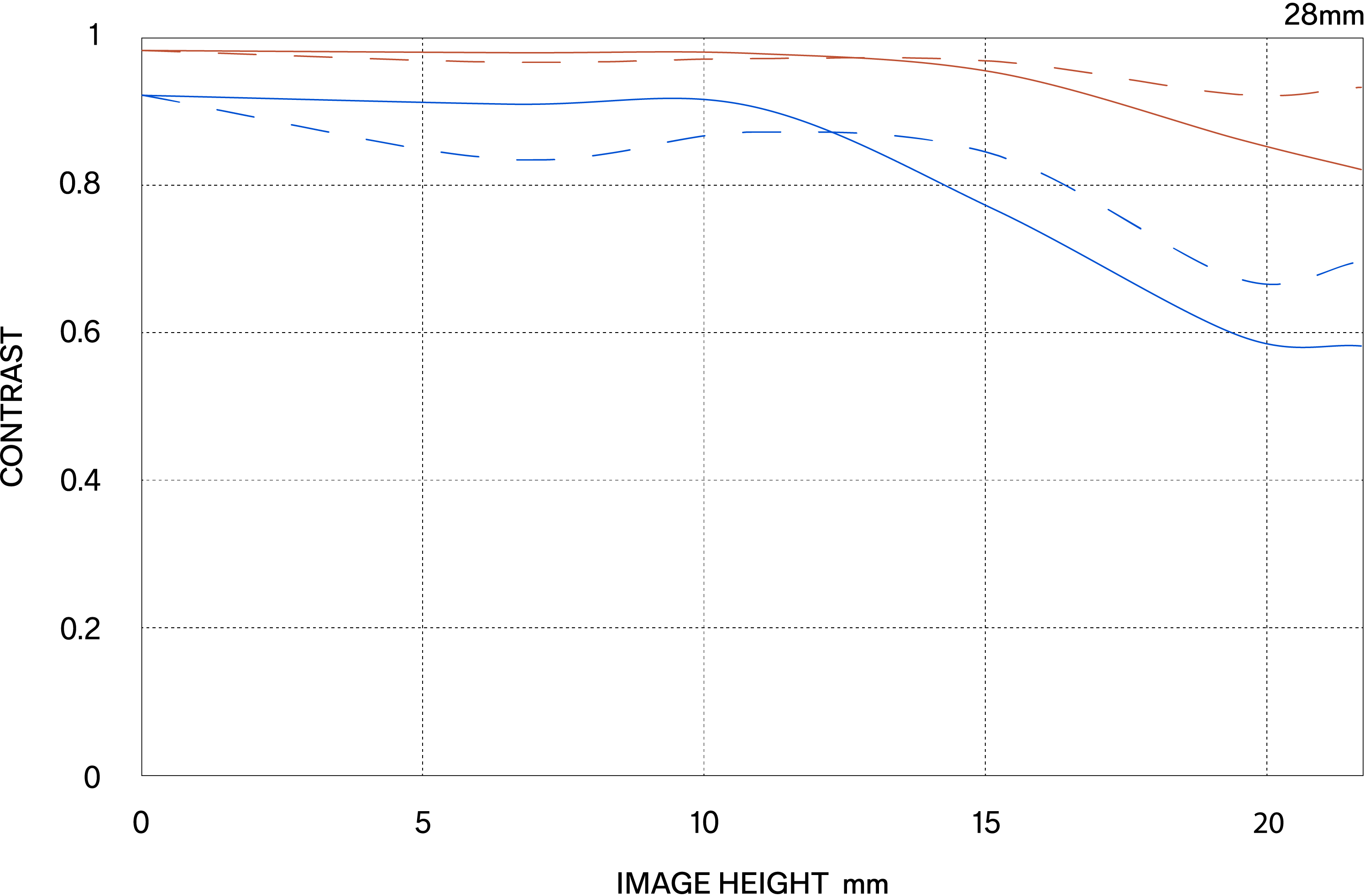

Diffraction MTF Chart
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/612_MFT_Diffractional.png)
![](https://www.sigma-imaging.fi/media/.renditions/wysiwyg/612_MFT_Diffractional.png)
